產品簡介：
lHF型氟塑料化工離心泵系按IH不銹鋼化工泵圖樣泵體、泵蓋接觸液體的部分采用氟塑料增強合金襯里壓制，葉輪、軸套、葉輪螺母等過流部件均采用氟塑料增強合金壓制，其性能、連接安裝尺寸與lH型泵保持不變。
IHF化工泵為單級單吸懸臂式離心泵。能滿足化工流程中輸送有腐蝕性粘度類似于水的液體。
技術參數：
流量：6.3～400m3/h；
揚程：5～132m；
轉速：2900、1450r/min；
功率：0.55～110KW；
進口直徑：50～200mm；
工作壓力：不超過1.6Mpa。
產品特點：
IHF型襯氟塑料離心泵的 泵體采用金屬外殼內襯聚全氟乙丙烯(F46)、葉輪和泵蓋均采用金屬嵌件外包氟塑料整體燒結壓制成型，軸封采用外裝式波紋管機械密封，靜環選用99．9％ 氧化鋁陶瓷或碳化硅，動環采用四氟填充材料或碳化硅。其特點是該泵耐腐蝕強，密封性能可靠，工作穩定，，使用壽命長。

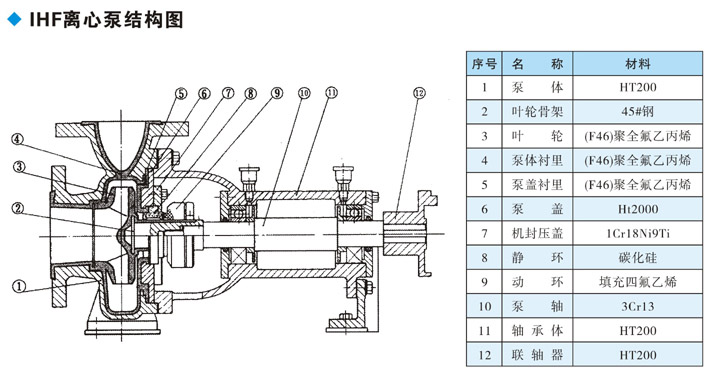

產品結構：
產品用途：
IHF型泵為單級單吸式氟塑料合金化工離心泵， 是按國標設計并結合非金屬泵的加工工藝設計生產的。該泵具有耐腐、耐磨、耐高溫、不老化、機械強度高、無毒素分解、使用溫度寬。該泵廣泛適用于化工、制藥、石油、冶金、電力、電鍍、酸洗、農藥、造紙等行業中液體輸送、廢水處理和加酸等工藝流程。本泵可輸送各種濃度的硫酸、鹽酸、硝酸、醋酸、氫氟酸、王水、強鹼、強氧化劑、有機溶劑等強腐蝕性介質的使用，是目前耐腐蝕裝備之一。

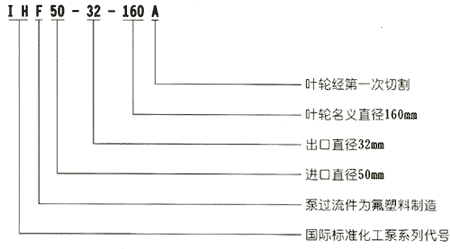

型號意義：
性能參數：
|
型 號 |
轉速 |
流量Q |
揚程 |
效率 |
功率P |
必耐汽 |
||
|
m3/h |
l/s |
軸功率 |
電機功率 |
|||||
|
（KW) |
||||||||
|
IHF32-25-125 |
2900 |
3.5 |
0.97 |
21 |
40 |
0.5 |
1.5 |
2.3 |
|
5 |
1.39 |
20 |
44 |
0.62 |
||||
|
6.5 |
1.8 |
18 |
42 |
0.76 |
||||
|
1450 |
1.75 |
0.49 |
5.25 |
37 |
0.068 |
0.75 |
2.3 |
|
|
2.5 |
0.69 |
5 |
40 |
0.085 |
||||
|
3.25 |
0.9 |
4.5 |
38 |
0.105 |
||||
|
IHF32-25-125A |
2900 |
3.1 |
0.06 |
17.6 |
38 |
0.7 |
1.1 |
2.3 |
|
4.5 |
1.25 |
16 |
41 |
0.48 |
||||
|
5.8 |
1.61 |
14.4 |
40 |
0.57 |
||||
|
IHF32-25-160 |
2900 |
3.5 |
0.97 |
33 |
34 |
0.93 |
2.2 |
2.3 |
|
5 |
1.39 |
32 |
40 |
1.1 |
||||
|
6.5 |
1.8 |
30 |
42 |
1.26 |
||||
|
1450 |
1.75 |
0.49 |
8.25 |
30 |
0.131 |
0.75 |
2.3 |
|
|
2.5 |
0.69 |
8 |
38 |
0.143 |
||||
|
3.25 |
0.9 |
7.5 |
40 |
0.166 |
||||
|
IHF32-25-160A |
2900 |
3.1 |
0.86 |
29 |
30 |
0.81 |
1.5 |
2.3 |
|
4.5 |
1.25 |
28 |
35 |
0.97 |
||||
|
5.8 |
1.61 |
26 |
36 |
1.14 |
||||
|
IHF40-32-125 |
2900 |
4.4 |
1.22 |
21 |
40 |
0.63 |
2.2 |
2.5 |
|
6.5 |
1.8 |
20 |
45 |
0.79 |
||||
|
8.3 |
2.31 |
18 |
43 |
0.95 |
||||
|
1450 |
2.2 |
0.6 |
5.25 |
37 |
0.085 |
0.75 |
2.5 |
|
|
3.25 |
0.9 |
5 |
41 |
0.108 |
||||
|
4.15 |
1.15 |
4.5 |
40 |
0.127 |
||||
|
IHF40-32-125A |
2900 |
3.9 |
1.08 |
17.6 |
38 |
0.49 |
1.5 |
2.5 |
|
5.6 |
1.56 |
16 |
42 |
0.58 |
||||
|
7.4 |
2.06 |
14.4 |
40 |
0.72 |
||||
|
IHF40-32-160 |
2900 |
4.4 |
1.22 |
33 |
34 |
1.16 |
2.2 |
2.5 |
|
6.5 |
1.8 |
32 |
40 |
1.42 |
||||
|
8.3 |
2.31 |
30 |
39 |
1.71 |
||||
|
1450 |
2.2 |
0.6 |
8.25 |
33 |
0.14 |
0.75 |
2.5 |
|
|
2.5 |
0.9 |
8 |
36 |
0.15 |
||||
|
3.25 |
1.15 |
7.5 |
37 |
0.18 |
||||
|
IHF40-32-160A |
2900 |
3.9 |
1.08 |
29 |
32 |
0.96 |
1.5 |
2.5 |
|
5.6 |
1.56 |
28 |
38 |
1.23 |
||||
|
7.4 |
2.06 |
26 |
37 |
1.41 |
||||
|
IHF50-32-125 |
2900 |
8.8 |
1.08 |
21.5 |
45 |
1.15 |
2.2 |
3.0 |
|
12.5 |
1.56 |
20 |
54 |
1.26 |
||||
|
16.3 |
2.06 |
17.5 |
53 |
1.47 |
||||
|
1450 |
4.4 |
1.2 |
5.37 |
37 |
0.17 |
0.75 |
3.0 |
|
|
6.25 |
1.74 |
5 |
46 |
0.18 |
||||
|
8.15 |
2.26 |
4.37 |
45 |
0.22 |
||||
|
IHF50-32-125A |
2900 |
8 |
2.22 |
17 |
42 |
0.88 |
1.5 |
3.0 |
|
11 |
3.05 |
16 |
52 |
0.92 |
||||
|
14.5 |
4.03 |
14 |
51 |
1.08 |
||||
|
IHF50-32-160 |
2900 |
8.8 |
2.44 |
33 |
41 |
1.93 |
4 |
3.0 |
|
12.5 |
3.47 |
32 |
48 |
2.27 |
||||
|
16.3 |
4.53 |
30 |
47 |
2.84 |
||||
|
1450 |
4.4 |
1.2 |
8.25 |
31 |
0.31 |
0.75 |
3.0 |
|
|
6.25 |
1.74 |
8 |
41 |
0.33 |
||||
|
8.15 |
2.26 |
7.5 |
42 |
0.39 |
||||
|
IHF50-32-160A |
2900 |
8.2 |
2.28 |
29 |
39 |
1.16 |
3 |
3.0 |
|
11.7 |
3.25 |
28 |
47 |
1.88 |
||||
|
15.2 |
4.22 |
26 |
46 |
2.34 |
||||
|
IHF50-32-200 |
2900 |
8.8 |
2.44 |
52 |
34 |
3.7 |
7.5 |
3.0 |
|
12.5 |
3.47 |
50 |
42 |
4.1 |
||||
|
16.3 |
4.53 |
48 |
41 |
5.2 |
||||
|
1450 |
4.4 |
1.2 |
13 |
25 |
0.62 |
1.5 |
3.0 |
|
|
6.25 |
1.74 |
12.5 |
33 |
0.65 |
||||
|
8.15 |
2.26 |
12 |
36 |
0.74 |
||||
|
IHF50-32-200A |
2900 |
8.2 |
2.28 |
45 |
31 |
3.24 |
5.5 |
3.0 |
|
11.7 |
11.7 |
44 |
40 |
3.5 |
||||
|
15.2 |
15.2 |
42 |
39 |
4.45 |
||||
|
IHF50-32-250 |
2900 |
8.8 |
8.8 |
82 |
27 |
7.3 |
11 |
3.0 |
|
12.5 |
12.5 |
80 |
35 |
7.8 |
||||
|
16.3 |
16.3 |
76 |
34 |
10 |
||||
|
1450 |
4.4 |
4.4 |
20.5 |
20 |
1.22 |
2.2 |
3.0 |
|
|
6.25 |
6.25 |
20 |
27 |
1.26 |
||||
|
8.15 |
8.15 |
19 |
30 |
1.4 |
||||
|
IHF50-32-250A |
2900 |
8.2 |
8.2 |
71 |
25 |
4.53 |
7.5 |
3.0 |
|
11.7 |
11.7 |
70 |
34 |
6.56 |
||||
|
15.2 |
15.2 |
68 |
33 |
8.52 |
||||
|
IHF65-50-125 |
2900 |
17.5 |
17.5 |
21.5 |
56 |
1.83 |
3 |
3.5 |
|
25 |
25 |
20 |
64 |
2.13 |
||||
|
32 |
32 |
17.5 |
63 |
2.42 |
||||
|
1450 |
8.72 |
8.75 |
5.37 |
45 |
0.28 |
0.75 |
3.5 |
|
|
12.5 |
12.5 |
5 |
57 |
0.3 |
||||
|
16 |
16 |
4.37 |
58 |
0.33 |
||||
|
IHF65-50-125A |
2900 |
15.6 |
15.6 |
17 |
53 |
1.36 |
2.2 |
3.5 |
|
22.3 |
22.3 |
16 |
62 |
1.57 |
||||
|
29 |
29 |
14 |
61 |
1.79 |
||||
|
IHF65-50-160 |
2900 |
17.5 |
17.5 |
33 |
50 |
3.15 |
5.5 |
3.5 |
|
25 |
25 |
32 |
59 |
3.69 |
||||
|
32 |
32 |
27.5 |
57 |
4.2 |
||||
|
1450 |
8.75 |
8.75 |
8.25 |
40 |
0.49 |
1.1 |
3.5 |
|
|
12.5 |
12.5 |
8 |
53 |
0.51 |
||||
|
16 |
16 |
6.87 |
51 |
0.59 |
||||
|
IHF65-50-160A |
2900 |
16.4 |
16.4 |
29 |
48 |
2.7 |
4 |
3.5 |
|
23.3 |
23.3 |
28 |
58 |
3.1 |
||||
|
30.4 |
30.4 |
24 |
56 |
3.54 |
||||
|
IHF65-40-200 |
2900 |
17.5 |
17.5 |
52 |
45 |
5.5 |
11 |
3.5 |
|
25 |
25 |
50 |
54 |
6.3 |
||||
|
32 |
32 |
45.5 |
54 |
7.35 |
||||
|
1450 |
8.75 |
8.75 |
13 |
36 |
0.86 |
1.5 |
3.5 |
|
|
12.5 |
12.5 |
12.5 |
46 |
0.93 |
||||
|
16 |
, , , |
11.4 |
47 |
1.05 |
||||
|
IHF65-40-200A |
2900 |
16.4 |
16.4 |
46 |
43 |
4.3 |
7.5 |
3.5 |
|
23.3 |
23.3 |
44 |
53 |
5 |
||||
|
30.4 |
30.4 |
40 |
52 |
5.2 |
||||
|
IHF65-40-250 |
2900 |
17.5 |
17.5 |
82 |
39 |
10.1 |
18.5 |
3.5 |
|
25 |
25 |
80 |
50 |
10.9 |
||||
|
32 |
32 |
76 |
52 |
12.74 |
||||
|
1450 |
8.75 |
8.75 |
20.5 |
32 |
1.52 |
3 |
3.5 |
|
|
12.5 |
12.5 |
20 |
42 |
1.62 |
||||
|
16 |
16 |
19 |
44 |
1.88 |
||||
|
IHF65-40-250A |
2900 |
16.4 |
16.4 |
71 |
36 |
8.8 |
15 |
3.5 |
|
23.3 |
23.3 |
70 |
48 |
9.3 |
||||
|
30.4 |
30.4 |
68 |
50 |
11.25 |
||||
|
IHF80-65-125 |
2900 |
35 |
35 |
21.5 |
64 |
3.2 |
5.5 |
4.0 |
|
50 |
50 |
20 |
69 |
3.95 |
||||
|
65 |
65 |
17 |
67 |
4.5 |
||||
|
1450 |
17.5 |
17.5 |
5.37 |
54 |
0.47 |
1.1 |
4.0 |
|
|
25 |
25 |
5 |
64 |
0.53 |
||||
|
32.5 |
32.5 |
4.25 |
62 |
0.61 |
||||
|
IHF80-65-125A |
2900 |
31 |
31 |
17 |
62 |
2.3 |
4 |
4.0 |
|
45 |
45 |
16 |
68 |
2.88 |
||||
|
58 |
58 |
14 |
67 |
3.3 |
||||
|
IHF80-65-160 |
2900 |
35 |
35 |
33 |
60 |
5.24 |
11 |
4.0 |
|
50 |
50 |
32 |
68 |
6.41 |
||||
|
65 |
65 |
27.5 |
67 |
7.27 |
||||
|
IHF80-65-160 |
1450 |
17.5 |
4.86 |
8.25 |
50 |
0.78 |
1.5 |
4.0 |
|
25 |
6.9 |
8 |
62 |
0.88 |
||||
|
32.5 |
9 |
6.88 |
61 |
1 |
||||
|
IHF80-65-160A |
2900 |
31 |
8.6 |
29 |
58 |
4.1 |
7.5 |
4.0 |
|
45 |
12.5 |
28 |
67 |
5.12 |
||||
|
58 |
16.1 |
24 |
66 |
5.34 |
||||
|
IHF80-50-200 |
2900 |
35 |
9.72 |
52 |
52 |
9.53 |
15 |
4.0 |
|
50 |
13.9 |
50 |
64 |
10.64 |
||||
|
65 |
18.1 |
45.5 |
65 |
12.39 |
||||
|
1450 |
17.5 |
4.86 |
13 |
51 |
1.21 |
3 |
4.0 |
|
|
25 |
6.9 |
12.5 |
59 |
1.44 |
||||
|
32.5 |
9 |
11.38 |
58 |
1.74 |
||||
|
IHF80-50-200A |
2900 |
31 |
8.6 |
46 |
50 |
7.35 |
11 |
4.0 |
|
45 |
12.5 |
44 |
63 |
8.56 |
||||
|
58 |
16.1 |
40 |
62 |
10 |
||||
|
IHF80-50-250 |
2900 |
35 |
9.72 |
82 |
40 |
19.4 |
30 |
4.0 |
|
50 |
13.9 |
80 |
50 |
21.8 |
||||
|
65 |
18.1 |
72 |
51 |
25 |
||||
|
1450 |
17.5 |
4.86 |
20.5 |
40 |
2.4 |
4 |
4.0 |
|
|
25 |
6.9 |
20 |
50 |
2.7 |
||||
|
32.5 |
9 |
18 |
51 |
3.12 |
||||
|
IHF80-50-250A |
2900 |
31 |
8.6 |
71.5 |
39 |
15.4 |
22 |
4.0 |
|
45 |
12.5 |
70 |
50 |
17.6 |
||||
|
58 |
16.1 |
63 |
51 |
19.9 |
||||
|
IHF100-80-125 |
2900 |
70 |
19.4 |
23 |
70 |
6.26 |
11 |
5.0 |
|
100 |
27.8 |
20 |
75 |
7.26 |
||||
|
130 |
36.1 |
14 |
65 |
7.63 |
||||
|
1450 |
35 |
9.7 |
5.75 |
65 |
0.85 |
1.5 |
4.5 |
|
|
50 |
13.9 |
5 |
70 |
0.97 |
||||
|
65 |
18 |
3.5 |
64 |
0.98 |
||||
|
IHF100-80-125A |
2900 |
62.6 |
17.4 |
18 |
68 |
4.5 |
7.5 |
5.0 |
|
89 |
24.7 |
16 |
73 |
5.3 |
||||
|
116 |
32.2 |
11 |
65 |
5.74 |
||||
|
IHF100-80-160 |
2900 |
70 |
19.4 |
34 |
68 |
9.53 |
15 |
5.0 |
|
100 |
27.8 |
32 |
74 |
11.78 |
||||
|
130 |
36.1 |
24 |
65 |
13.03 |
||||
|
1450 |
35 |
9.7 |
8.5 |
60 |
1.35 |
2.2 |
4.5 |
|
|
50 |
13.9 |
8 |
68 |
1.6 |
||||
|
65 |
18 |
6.5 |
67 |
1.69 |
||||
|
IHF100-80-160A |
2900 |
65.4 |
18.2 |
32 |
66 |
8.6 |
11 |
5.0 |
|
93.5 |
26 |
28 |
73 |
9.3 |
||||
|
121 |
33.6 |
21 |
65 |
10.6 |
||||
|
IHF100-65-200 |
2900 |
70 |
19.4 |
52 |
64 |
15.5 |
30 |
5.0 |
|
100 |
27.8 |
50 |
72 |
18.91 |
||||
|
130 |
36.1 |
42 |
71 |
20.94 |
||||
|
1450 |
35 |
9.7 |
13 |
60 |
2.06 |
4 |
4.5 |
|
|
50 |
13.9 |
12.5 |
68 |
2.5 |
||||
|
65 |
18 |
10.5 |
63 |
2.95 |
||||
|
IHF100-65-200A |
2900 |
65.4 |
18.2 |
46 |
63 |
13 |
22 |
5.0 |
|
93.5 |
26 |
44 |
71 |
15.02 |
||||
|
121 |
33.6 |
37 |
70 |
17.4 |
||||
|
IHF125-100-125 |
2900 |
150 |
41.6 |
20 |
70 |
12.8 |
18.5 |
5.0 |
|
IHF125-100-160 |
2900 |
160 |
44.4 |
32 |
63 |
28.5 |
37 |
5.0 |
